• Magnetic Racks

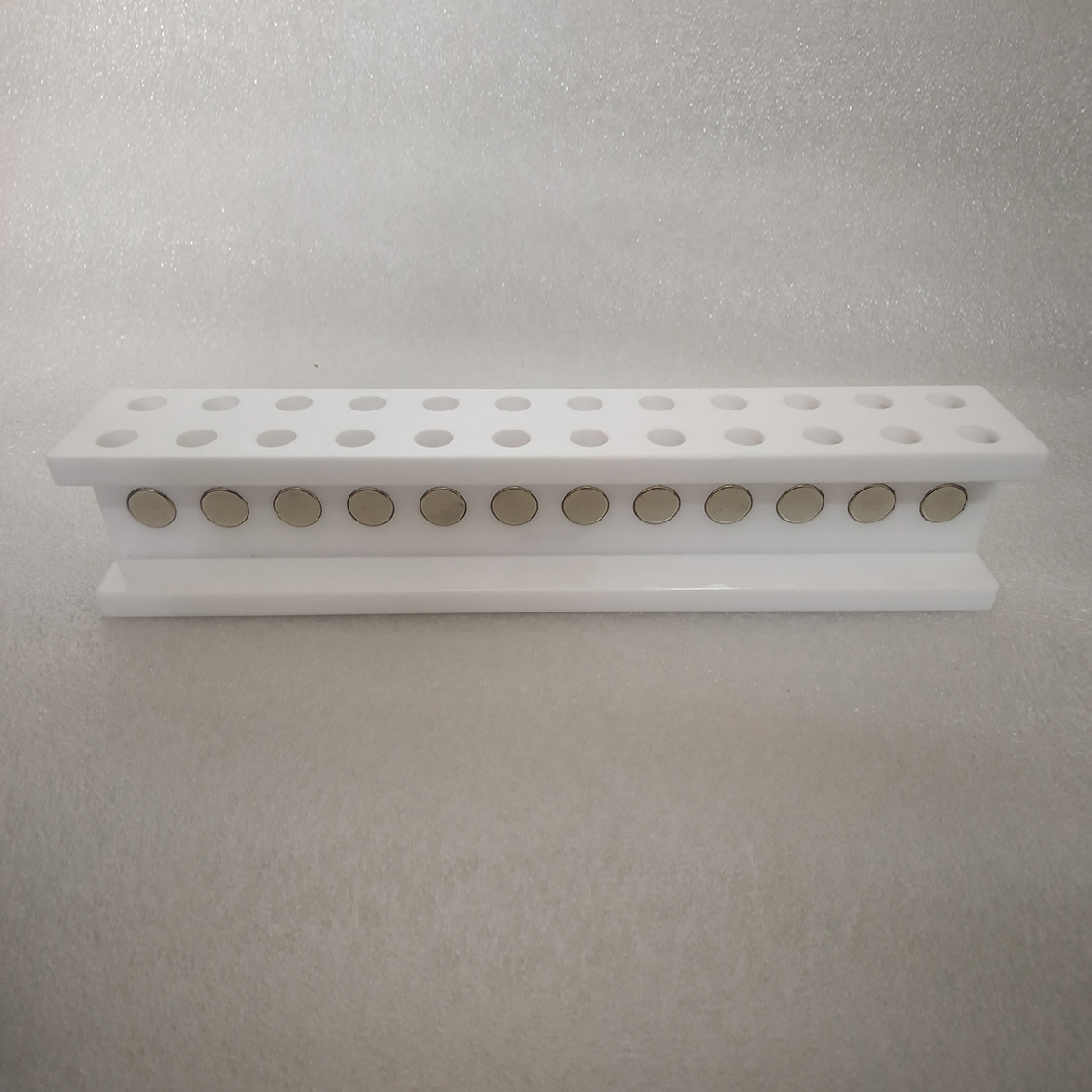

24- Tube Magnetic Separation Rack:

  • InoMag magnetic separation rack is designed to separate InoMag paramagnetic beads from solution contained in 1.5 mL and 2 mL micro-centrifuge tubes.
  • The magnetic field has been optimized for separation of tubes < 2 mL in volume.
  • Will hold up to 24, 1.5ml – 2ml microfuge tubes

16- Tube Magnetic Separation Rack:

  • Strong permanent Neodymium magnets for fast and effective bead separation.
  • Holds up to 16 standard 1.5–2mL micro centrifuge tubes in numbered spaces.
  • Magnet can be used with all types of Beads for efficient isolation of proteins and nucleic acids
  • Specially designed for robust performance with different sample volumes
  • 16 numbered sample spaces make magnet for parallel handling of multiple samples
  • With 8 tube positions on each side of rack, easily scale protocols to accommodate 96-well plate reactions
  • Stable and tight magnetic bead capture on micro centrifuge tube wall

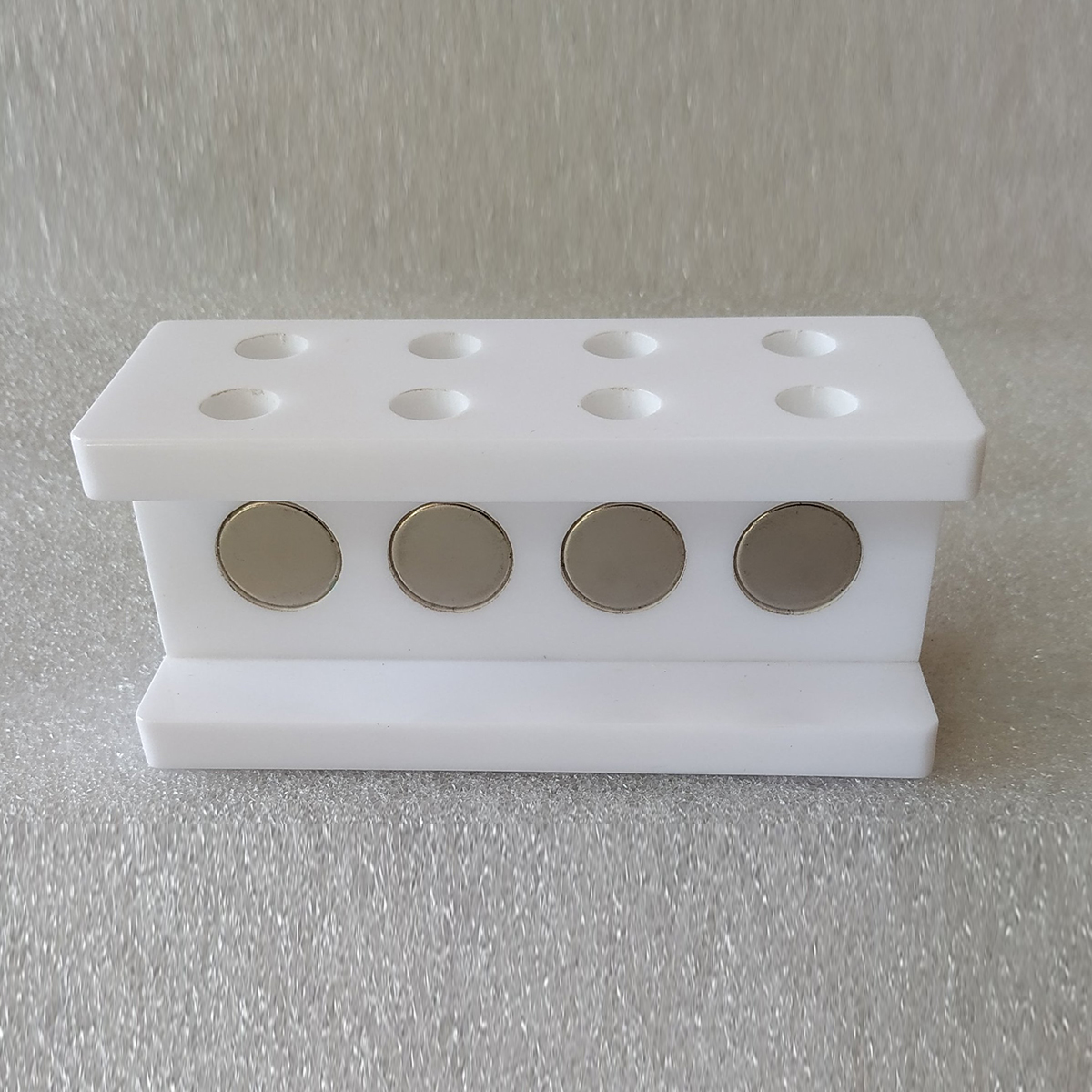

8 -Tube Magnetic Separation Rack:

  • The Magnetic Separation Racks are designed to be used for small-scale separations using magnetic particles.
  • Will accommodate most 1.5 mL and 2.0 mL Microfuge Tubes
  • Angled magnets allow tubes to come in close proximity with magnets
  • Each tube has its own individual strong neodymium magnet

6-Tube Magnetic Separation Rack:

  • The Magnetic Separation Racks are designed to be used for small-scale separations using magnetic particles.
  • The magnets are located on the sides of the racks, resulting in minimal sample loss during pipetting
  • The rack holds up to six 1.5-2.0 ml tubes and contains three neodymium rare earth permanent magnets.

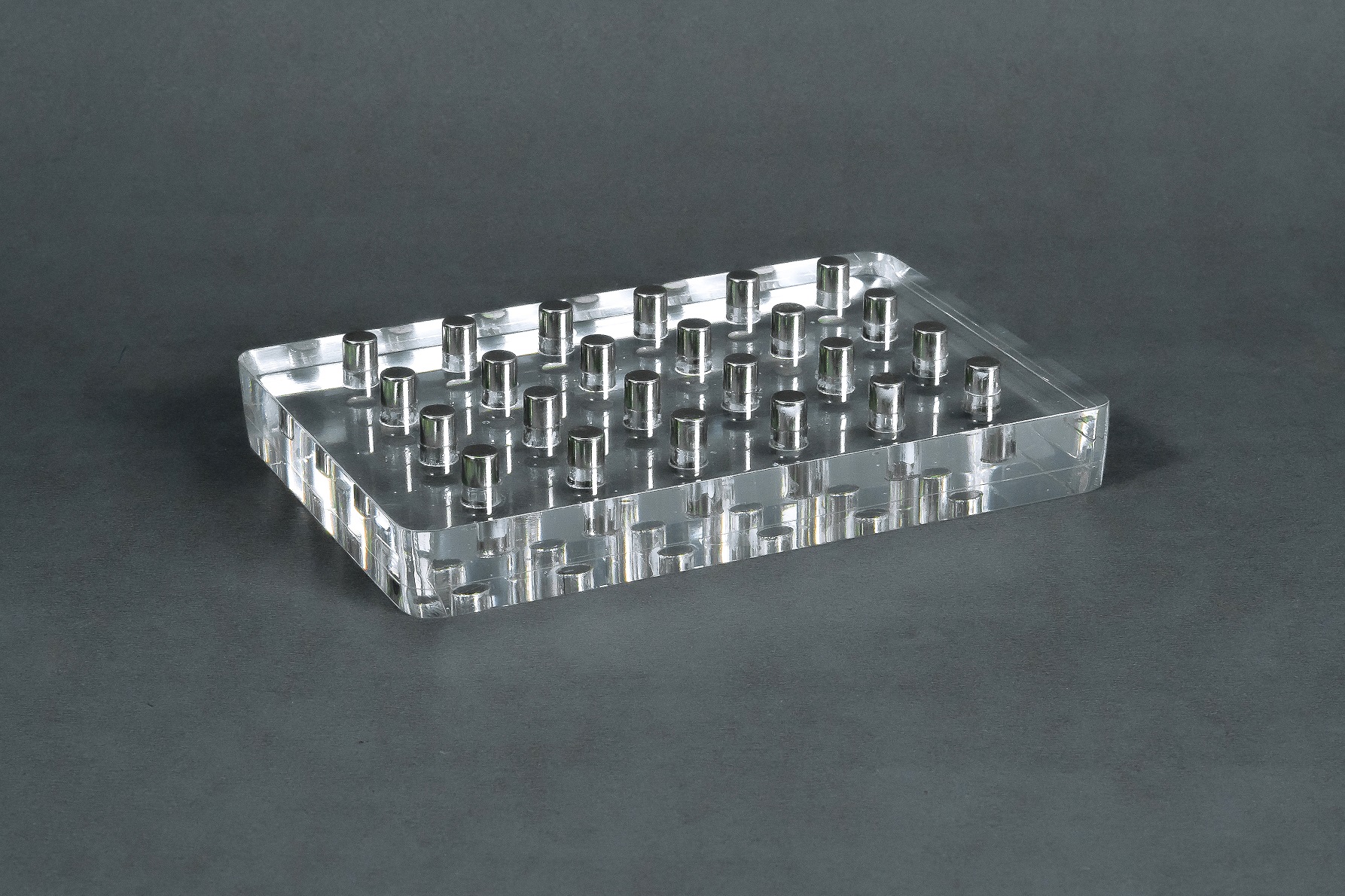

96-Well Plate Magnetic Separation Rack:

  • The 96-well Plate Magnetic Separation Rack is designed to be used with commercially available high-flanged 100 μl to 300 μl flat-bottom 96-well microplates.
  • 24 side-pull magnetic pins attract magnetic beads from solution to the side walls of four adjacent wells
  • The orientation of the magnetic field ensures complete removal of the magnetic beads from solution during pipetting steps, thereby minimizing sample loss.

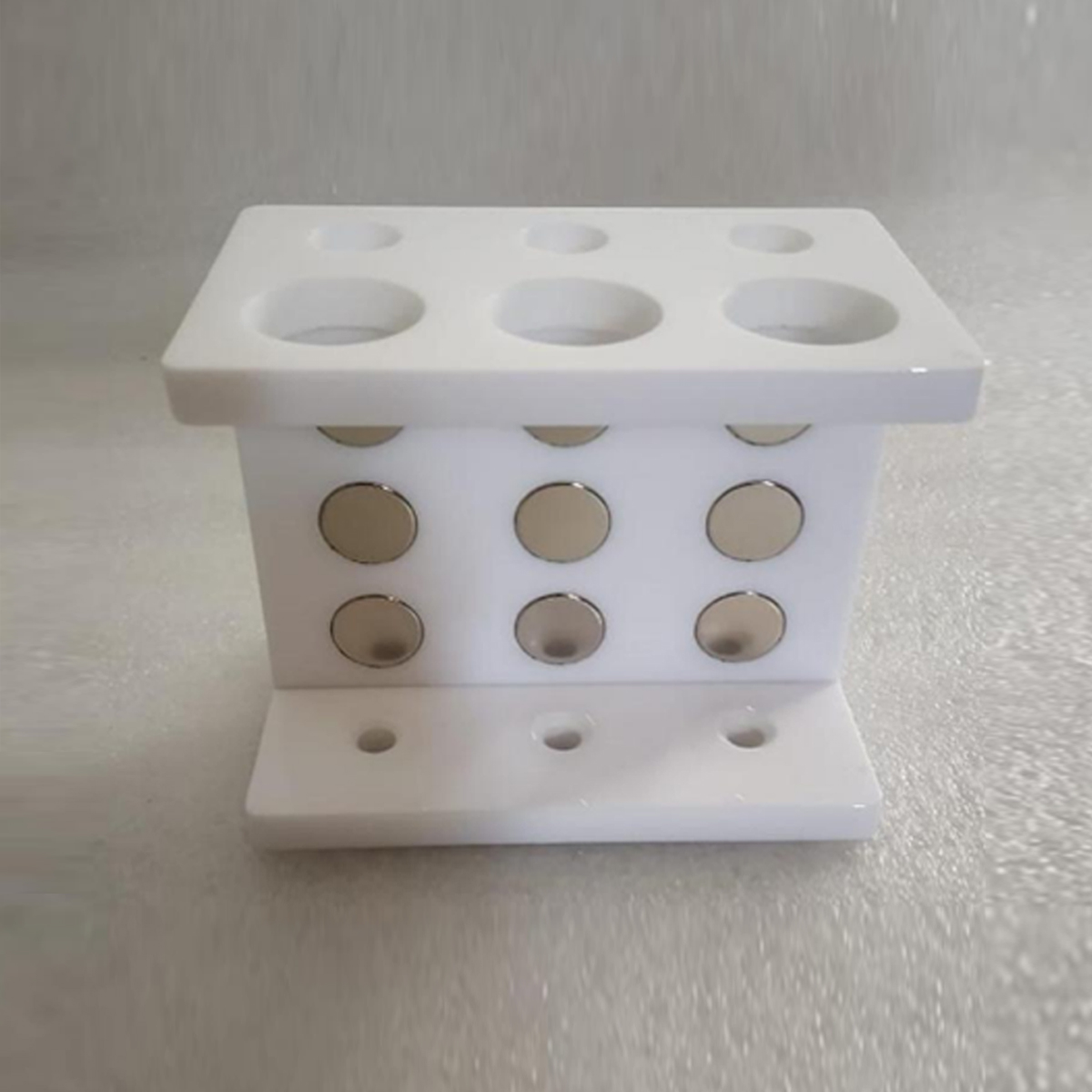

15ml/50ml centrifuge tube Magnetic Separation Rack:

  • InoMag magnetic separation rack is designed to separate paramagnetic beads from solution contained in 15 mL and 50 mL tubes.
  • With the proprietary adaptable design of the InoMag, three samples in 15 ml and 50 ml tubes can be processed simultaneously which greatly increases the ease of use.
  • Holds up to 3 x 15 ml and 3 x 50 ml centrifuge tubes
  • Contains 9 strong magnets for fast bead separations.
